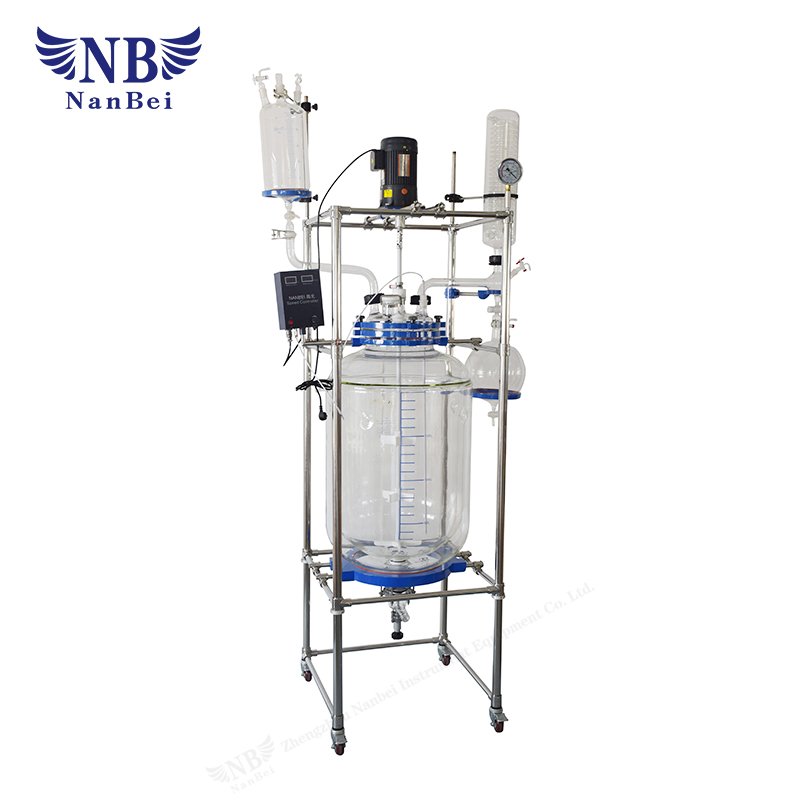

200 liters Jacketed Glass Reactor

200 liters Jacketed Glass Reactor Model NB-200L Glass Material GG-17 Frame Material 304 Stainless steel Fittings Material 304 Stainless steel Moves Brake Caster Reaction bottle capacity 200L Jacketed Capacity 28L Flanged out of the oil circ

     200 liters Jacketed Glass Reactor

    Model NB-200L
    Glass Material GG-17
    Frame Material 304 Stainless steel
    Fittings Material 304 Stainless steel
    Moves Brake Caster
    Reaction bottle capacity 200L
    Jacketed Capacity 28L
    Flanged out of the oil circulation port Low feed high outlet
    Reaction bottle cover Six port
    Discharger port distance to ground 450mm
    Temp. range -80-250
    Vacuum degreee 0.098Mpa
    Stirring speed 0-280rpm
    Stirring diameter 15mm
    Stirring power 750W1/5
    Coltage(V/Hz) 220V/50Hz
    Dimension(mm) 1300*900*3400
    Packing size(mm) 2300*930*1350
    Packign weightKG 190



    Speed mode Frequency control speed
    Motor Whole cooper wire, ratio 3: 1
    Speed display Digital display
    Temp. display PT100 sensor, digital display
    Sealing method Tetrafluoroethylene seal assembly, ¢ 60 flange stirring port
    Condenser Vertical 120*800mm40#port
    Reflux(distillation) apparatus Reflux elbow with discharger port, milling mouth 50 #
    Dropping device 2L,Constant pressure funnel,40# port
    Pressure relief device 34# Pressure reducing valve
    Temperature tube 24#
    Solid addition 80 Flang with tetrafluoroethylene cover
    Discharge mode Oblique discharge with glass discharger value,¢80 Flang
    Vacuum Display Vacuum Universal joints
    Stirring Connection Universal joints connection
    Stir bar Anchor stainless steel rods, outsourcing tetrafluoroethylene
