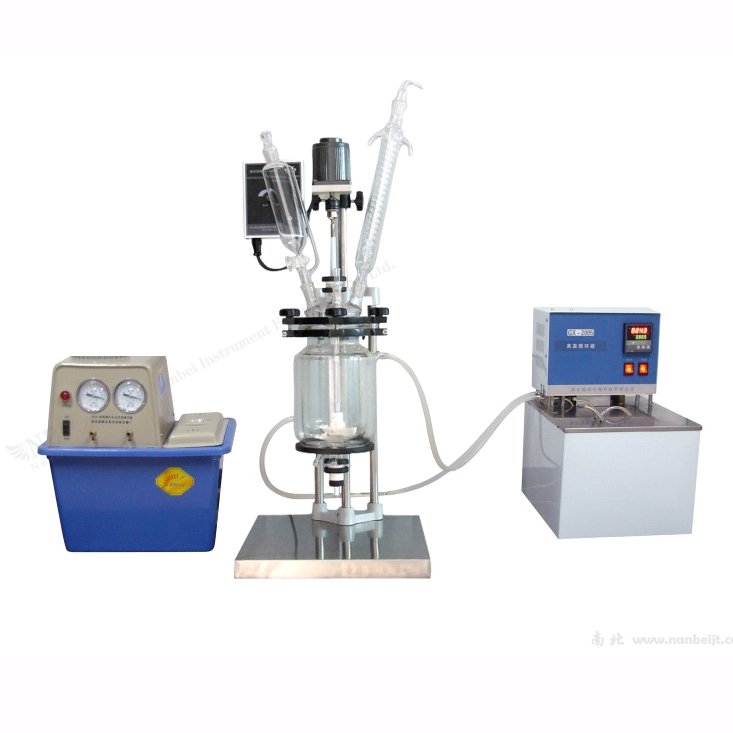

1L 2L 3L 5L double layer ex-proof jacketed mini glass reactor

Brief introduction of double glass reactor: Kettle body is designed by double glazing glass reactor, inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating

    Brief introduction of double glass reactor:

    Kettle body is designed by double glazing glass reactor, inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature or vacuum experiment reflux and distillation of the reaction solution, ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials

    Features of Nanbei chemical reactor:
    1. Full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
    2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments
    3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098MPa
    4. PT100 temperature and is a liquid crystal display, more accurate temperature measurement and more convenient
    5. Frequency control, AC induction motor, constant speed, brushless, no spark, security and stability, and continuous work
    6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure
    7. Bottom flanged discharge port with teflon value, aluminum parts flange fixed container no dead ends

    ModelNB-1LNB-2LNB-3LNB-5L
    Glass materialGG-17
    Frame material304 stainless steel
    Reaction bottle capacity1L2L3L5L
    Jacketed capacity0.4L0.5L0.6L0.8L
    Flanged out of the oil circulation portLow feed high outlet
    Reaction bottle cover port5 ports
    Discharger port distance to ground30mm
    Temp. range-80 to 250ºC
    Vacuum 0.098MPa
    Stirring speed0-800rpm
    Stirring diameter8mm
    Stirring power40W40W90W90W
    Power220V/50Hz
    Dimensions350*345*1000mm350*345*1000mm350*410*1250mm350*410*1250mm
    Packing size1200*480*400mm1200*480*400mm1380*500*400mm 1380*500*400mm
    Packing weight32kg32kg38kg38kg
    Remark: This product is for civilian use only
