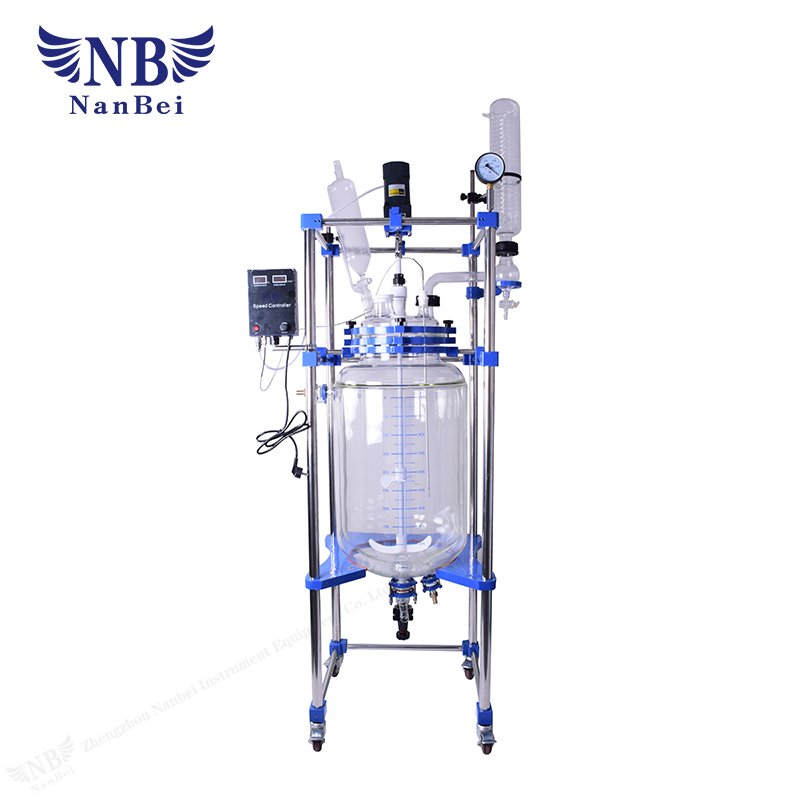

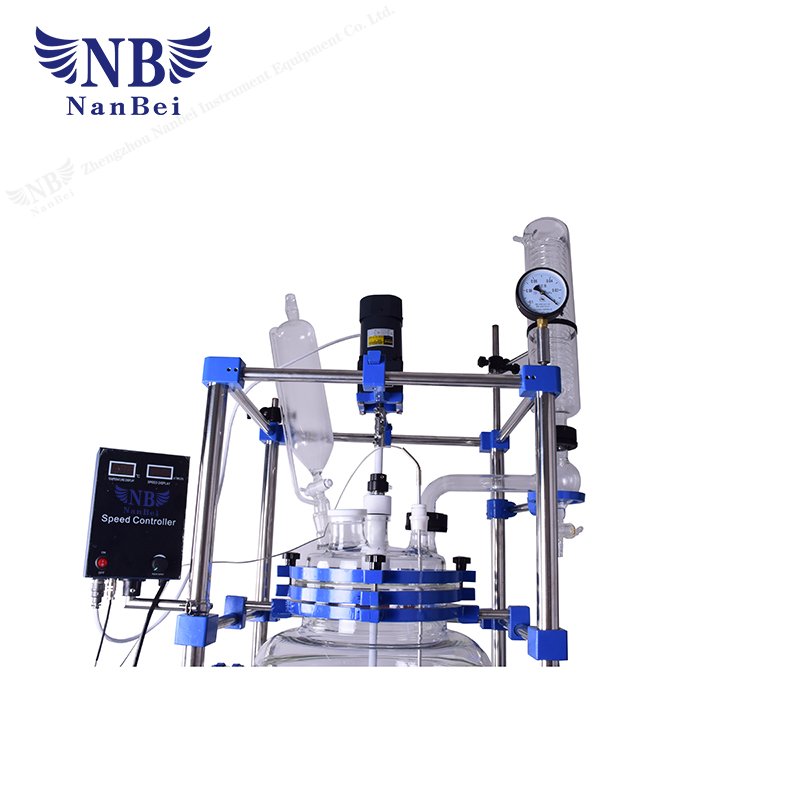

Pharmaceutical Machinery chemical reaction glass jacketed vessel

Brief introduction of double glass reactor: The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source cir

    Brief introduction of double glass reactor:

    The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.

    Features of NANBEI chemical reactor:

    1.A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties

    2.Limit temperature of 250 for high temperature experiments, and limit temperature of -60 for low temperature experiments.

    3.Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

    4.The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

    5.Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

    6.Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

    7.The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.

    NameNB-100L
    Glass materialGG-17
    Frame Material304 Stainless steel
    Moving modeBrake type universal corner wheel
    Reaction bottle capacity100L
    Jacketed CapacityBall type 20L
    Port No. of reactor cover7
    Distance between discharge to floor18L
    Flanged out of the oil circulation portLow feed high outlet
    Reaction bottle cover port6ports
    Discharger port distance to ground450mm
    Temp. range-80-250°C
    Vacuum0.098Mpa
    Stirring speed0-450rpm
    Stirring diameter15mm
    Stirring power250W
    Voltage(V/Hz)220V/50Hz
    Dimension(mm)610*610*2400
    Packing size(mm)1900*700*870
    Packing weightKG125
    Remark: This product is for civilian use only
